R1.4 Camera Settings: Over-exposed Histogram

Overview

In this module, students learn about the challenges and solutions related to overexposure in photography. Overexposure, indicated by an overexposed histogram, can cause loss of detail and color in the brightest parts of an image. To avoid this, students are taught to adjust camera settings such as ISO, aperture, and shutter speed. The use of appropriate flash power, and specifically High-Speed Sync for higher shutter speeds, is also discussed. Lastly, students are guided on how to balance exposure effectively to achieve high-quality results in various lighting situations.

By The End of This Lesson Students Will Be Able To

• Understand that an overexposed histogram, with data heavily skewed to the right, signifies an overexposed image that may have lost detail in the highlights due to excessive light reaching the camera sensor.
• Recognize that overexposure results in “clipping” or “blowing out” of the highlights, leading to loss of color and detail information that can’t be recovered in post-processing.
• Realize that overexposed areas appear as flat, featureless, and unnaturally bright spots, compromising the overall quality and visual appeal of the photograph.
• Learn how to avoid overexposure by carefully monitoring the histogram and adjusting camera settings including lowering the ISO, narrowing the aperture, or increasing the shutter speed.
• Comprehend the importance of using appropriate flash power to fill in excess shadow areas that may appear when preventing overexposure, especially when using shutter speeds higher than the sync speed.
• Understand the need to use off-camera flash with High-Speed Sync (HSS) to maintain proper exposure and prevent “black band” issues when working with higher shutter speeds.
• Know that the use of HSS can significantly reduce the power output of a flash or strobe.
• Learn the preferable order of adjusting camera settings to control overexposure: first reducing ISO, then adjusting aperture to a maximum value that matches the creative vision, and finally increasing shutter speed if necessary.
• Gain the skills to balance exposure effectively, preserve details in both highlights and shadows, and achieve high-quality results in challenging lighting situations.

Course Content

Over-exposed Histogram

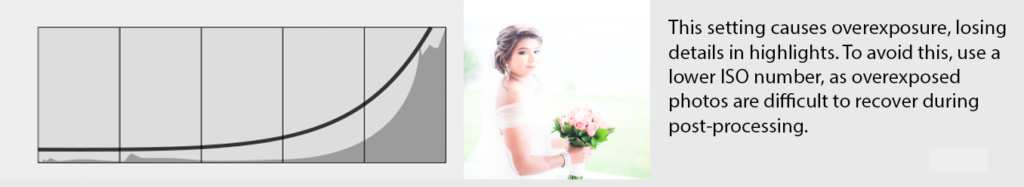

An overexposed histogram, characterized by a heavy skew to the right and a concentration of data in the highlight region, indicates a bright image with potential loss of detail in the highlights. Overexposure occurs when too much light reaches the camera’s sensor, causing the brightest areas to become “clipped” or “blown out.” Clipping refers to the loss of information in the highlights, where the brightest pixels reach their maximum values and can no longer retain any details or color information.

Unlike underexposed images, where some details can be recovered from the shadows despite the risk of noise or grain, overexposed images present a greater challenge in post-processing. When highlights are clipped, the lost details and color accuracy cannot be retrieved, as the sensor has not recorded any usable information in those areas. Consequently, the overexposed portions of the image will appear as flat, featureless, and unnaturally bright spots, significantly compromising the overall quality and visual appeal of the photograph.

To avoid overexposure and the irreversible loss of highlight details, photographers need to carefully monitor the histogram and adjust their camera settings accordingly. This may involve using a lower ISO, narrowing the aperture, or increasing the shutter speed to reduce the amount of light entering the camera. By understanding and effectively managing the exposure, photographers can prevent highlight clipping and capture well-balanced images with accurate colors and preserved details in both the shadows and highlights.

After lowering the ISO, adjusting the aperture, or increasing the shutter speed to prevent overexposure, it is essential to use an appropriate flash power to fill in any excess shadow areas that may be created on the subject. When working with shutter speeds higher than the sync speed (usually 1/250s or faster), it is necessary to use off-camera flash with High-Speed Sync (HSS) to maintain proper exposure and avoid the “black band” issue.

However, it is important to note that using HSS can significantly reduce the power output of your strobe or flash. In such cases, it is preferable to first attempt ISO reduction, followed by adjusting the aperture to the maximum value that aligns with your creative vision, before resorting to increasing the shutter speed to control exposure. By taking these steps, photographers can effectively balance exposure, preserve details in both highlights and shadows, and achieve high-quality results in challenging lighting situations.

Cognitive Engagement Questions

1. 1. 1. Assignment 1: Identifying Overexposed Histograms (Assignment #EXPO-004)Objective: Recognize an overexposed histogram, and understand the effects of overexposure on image quality.Task: Students should find or capture a photo that’s overexposed. They should provide the photo and its corresponding histogram, then write a brief analysis on how the histogram shows the image’s overexposure and how this affects the image’s detail and color accuracy, particularly in the highlights.

         Email Subject: Assignment #EXPO-004: Identifying Overexposed Histograms

         Assignment 2: Correcting Overexposure Using Camera Settings (Assignment #EXPO-005)

         Objective: Understand how to adjust camera settings, such as ISO, aperture, and shutter speed, to avoid overexposure.

         Task: Students should take an overexposed photograph, then correct it using the camera settings. The before and after images, along with an explanation of the settings adjusted to correct the overexposure, should be submitted. The focus should be on maintaining details in the highlights.

         Email Subject: Assignment #EXPO-005: Correcting Overexposure Using Camera Settings

         Assignment 3: Balancing Exposure with High-Speed Sync Flash (Assignment #EXPO-006)

         Objective: Learn to balance exposure and prevent overexposure using an off-camera flash with High-Speed Sync (HSS).

         Task: Students should capture an image in a setting with challenging lighting (preferably bright or high-contrast) using a High-Speed Sync flash. They should provide the final image, camera settings, and a brief explanation of how they used HSS flash to prevent overexposure and preserve details.

         Email Subject: Assignment #EXPO-006: Balancing Exposure with High-Speed Sync Flash

         For all assignments, students should email their results to clintonali@gmail.com for evaluation or constructive criticism. Please ensure the appropriate assignment number and topic is used in the email subject line for easy identification and sorting.
